EVSE Charge Station Adaptor
EVSE Charge Station Adaptor

EVSE Charge Station Adaptor

(Exc. 20% VAT)
(£388.80 Inc. VAT)
5 units
Part Number


Key Features

  • Universal to all electrical multifunctional installation testers

  • Proximity Pilot (PP) State (NC, 13A, 20A, 32A & 63A)

  • Control Pilot (CP) State (A,B,C & D)

  • PE Pre-test

  • CP Error “E”

  • PE Error

  • 13A Input for Loading or MFT connection

  • 4mm Input for Single & 3-Phase Chargers

  • Supplied with Type 1 and Type 2 EV Plug

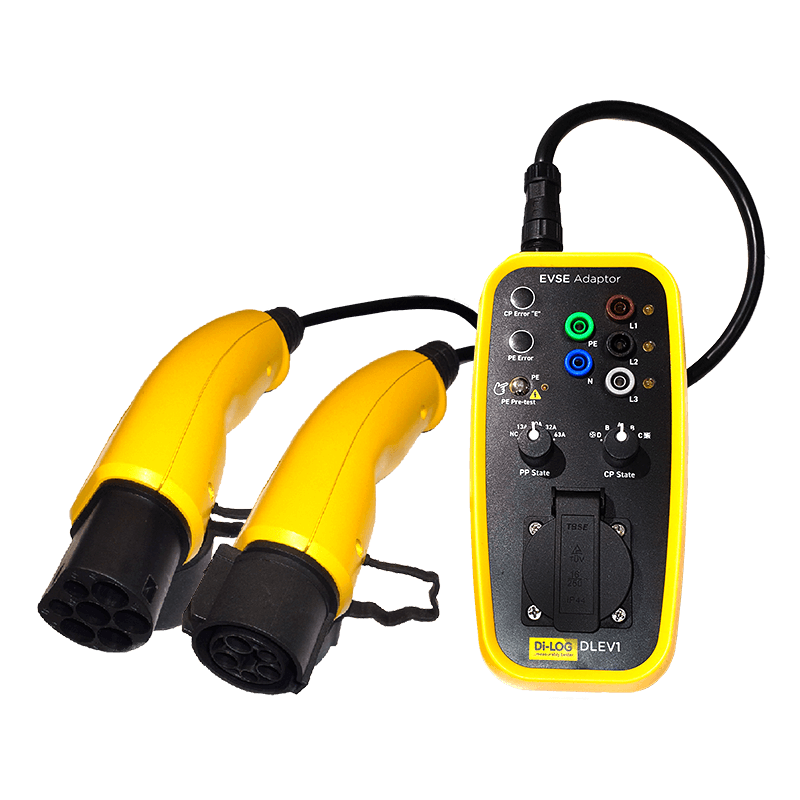

EVSE Charge Station Adaptor Kit

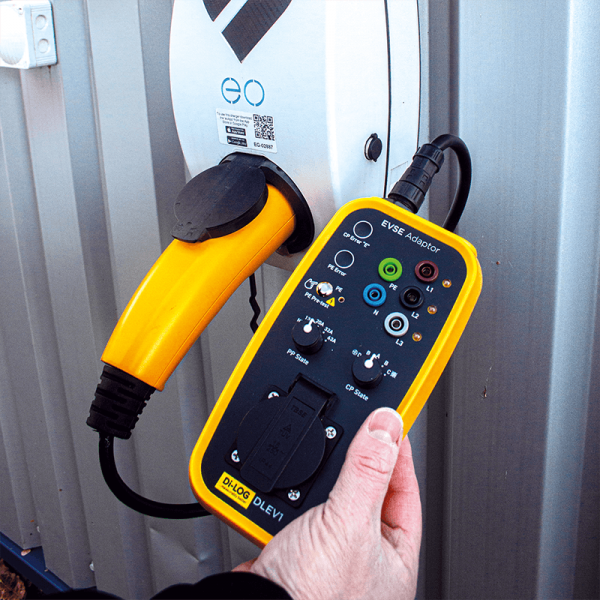

The DLEV1 is a universal EVSE Charge Station Adaptor Kit that will simulate the Proximity Pilot (PP) States and Control Pilot (CP) States required to energise a free-standing or wall-mounted EV charge station. Supplied with a type 1 and type 2 connector plug specifically designed for testing, the DLEV1 kit will also simulate PE Pre-test, CP Error “E” and PE Error with the added feature of CP signal output and load connection.

MFT & Load Connection

The DLEV1 has a 13A socket for MFT mains lead or can be used for inline load connection. In addition to this, there are also 4mm input terminals for single or 3-phase connections.

The DLEV1 is universal to all Electrical Installation Multifunction Testers, such as the Di-LOG DL9130EV and can even be purchased as part of our complete EV test kit, the DL9130EVKIT
