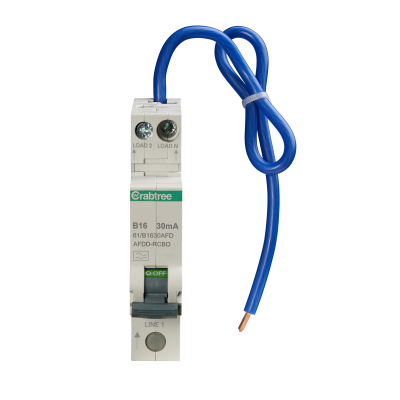

Crabtree 61/B1630AFD Starbreaker SPN Type B AFDD combination RBCO SP 16A 30MA

(Exc. 20% VAT)
(£118.50 Inc. VAT)
25 units
Part Number

Starbreaker 16A 30mA 6kA 1 Pole + Neutral B-Curve Plug In RCBO AFDD

  • Single module miniature combined AFDD and RCBO
  • Rated current: 16A
  • B-curve MCB
  • 30mA Type-A RCD
  • Single pole with switched neutral
  • Plug-in to Starbreaker boards
  • Rated short-circuit breaking capacity lcn: 6kA
  • Over voltage category: 3
  • IEC 61009-1, BS EN 62606
Technical Features

• Miniature AFDD/RCBO
• BS EN 62606
• Current ratings - 16A,
• Serial arc fault detection
• Parallel arc fault detection
• Rated residual operating current 30mA
• RCD type A
• Tripping characteristic curve B
• Pole configuration 1P+N (switched neutral)
• Rated short circuit capacity 6kA
• Plug in connection to the Starbreaker busbar system
